Building LCD Monitor (8/9)

Posted by Wesley on

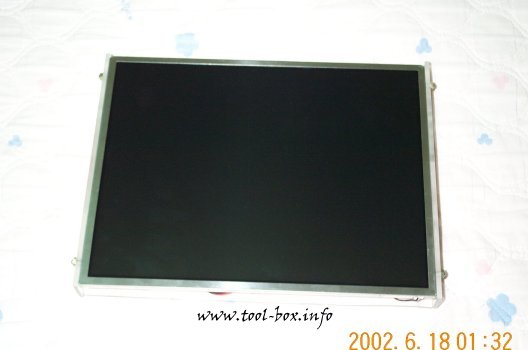

Front Side of the LCD Monitor

It doesn't look much different from the first LCD panel picture because all the other components are completely concealed in the back. It's quite visible that the four bolts are holding the panel to the casing firmly.

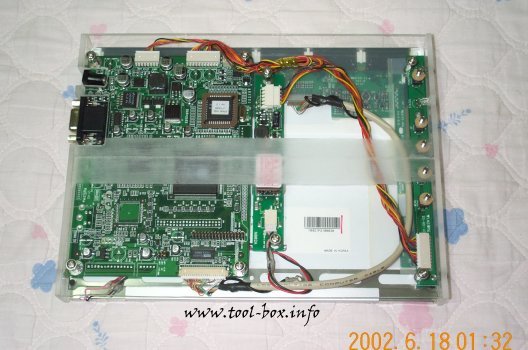

Back Side of the LCD Monitor

This is how the monitor looks from the back. You can find the analog video connector and the DC power input at the top left side, and the OSD controls at the right side. You can see the wires connecting the LCD to the controller, as well as others.
